End Margin

Home Tolerance End Margin

End Margin

Due to the layout of punches in perforating tools, when end margins are specified, the perforating process typically results in an unfinished pattern. Because finished end patterns are not always possible, unfinished end patterns are considered industry standard.

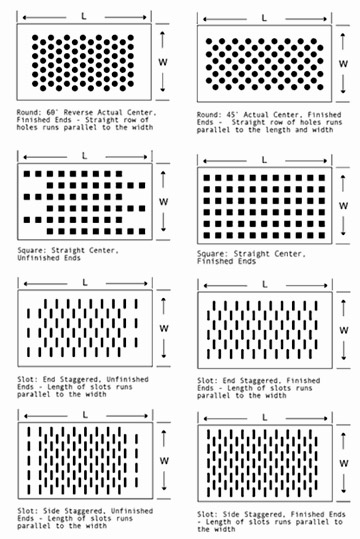

To find out if a desired pattern can be produced with finished ends, consult us at or our Customer Service No +91-98-6888-HOLE (4653). Except for those tools that automatically produce a finished end pattern, unless otherwise specified, unfinished ends are supplied. Examples of unfinished and finished ends for most hole types are shown to your right and below. If margins are not specified, then "Safe Sides, No Ends" in the specified pattern are supplied.

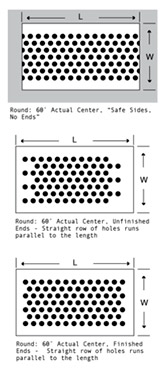

An example of "Safe Sides, No Ends" for 60° Actual Center is shown
